25kW X-Band Radar with 7ft open scanner TX/RX DOWN

320 mm PPI colour IMO radar for vessels >10.000 GT



Scanner length: 7 ft
Output power: 25kW
Display: 26 inch TFT LCD High resolution colour daylight radar

Desktop type, 1 set consists of:

NCM-928 Control unit consisting of

  • NDC-1590 Processor / Central control unit (CCU)
  • NBD-913 Power supply (85-264V AC/21.6-31.2V DC in; 12-48V DC out)

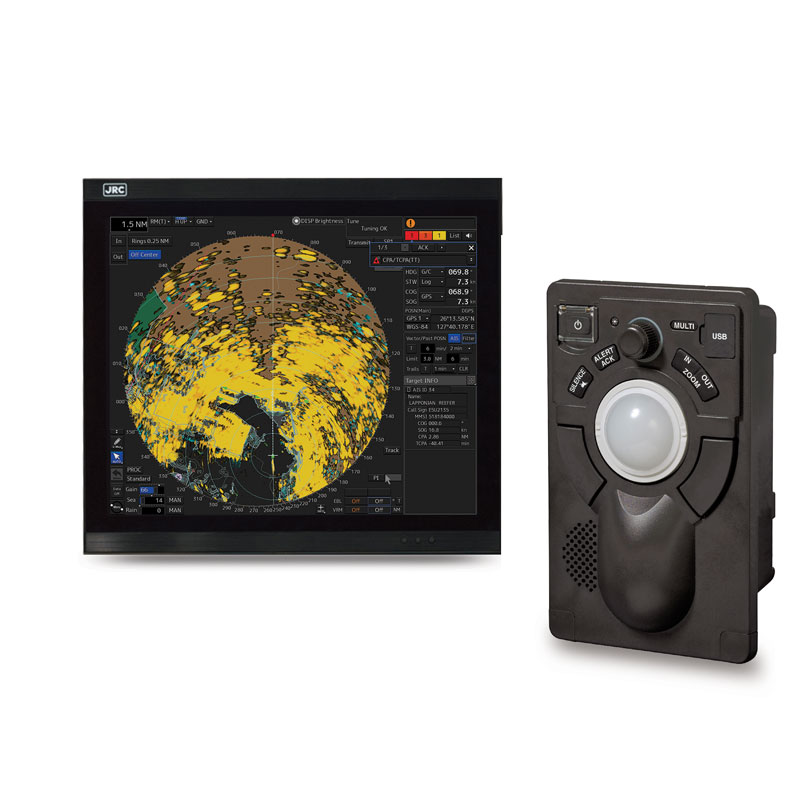

  • NCE-5605 Trackball Operation Unit (full keyboard is optional)

NWZ-208 26 inch TFT LCD High resolution colour daylight display unit

NKE-1129-7PM 7 ft Open scanner, 25kW X-band, assembled, consisting of

  • NKE-1129 25kW scanner unit
  • NAX-16B-7 7ft Array unit
  • NJU-85 Performance Monitor

NTG-3225 X-BAND Transceiver unit 25kW

2695110056 40m 14 core composite scanner cable

7AWRD0004 Standard Waveguide kit (FR-9) 30m

CQD-2273 Radar Interface

CWB-1592 Junction box (NQE-1143)

CML-901F Interconnection cable kit for Desktop type (cable lenghts app. 5m)

CML-836ACF Interconnection cable kit for Desktop type for scanner unit (cable lenghts app. 5m)

Radar License

Instruction Manual (digital)

AC 110 V (100 to 115V AC) or AC 230V (220 to 240V AC), 50/60Hz, 1Ø. Please specify when ordering.

DC 24V (21.6-31.2V DC) for backup

Output power 25kW
Scanner length 7 ft
Power AC 110V (AC 100 to 115V) or AC 230V (AC 220 to 240V), 50/60Hz, 1Ø. DC 24V (21.6-31.2V DC) for backup.
Display 26 inch TFT LCD high resolution display (near-range and far-range images)
  Improved day-night function
  built-in self-diagnosis program
  Top screen with strictly selected information
ARPA targets 100
AIS targets 500

Sortable TT/AIR list

Wave analyzer (option), wind, depth and current information from external sensor

External interswitch unit can connect up to 8 units

Optionally, radar can be upgraded to Multi Function Display: radar / ECDIS / Conning / Alarm management switchable

Performance Monitor included as standard.

X-BAND scanner offers great resolution and detedtion of smaller targets.

 NKE 1129 7 X band scanner

  MFD tech spec desktop version
